Recently I wanted to create a player to show a Caiman, Scarlet Macaw, and other animals from Costa Rica. The default players that could be used with Brightcove didn't look quite right for what I wanted to do, and so I had my first real need to use BEML for a custom player.

BEML is the XML syntax that's used to create a template that's used to create a Brightcove player. The BEML syntax will look familiar to Flex users, as there is a Canvas, VBox, HBox, Label, and many other similar components. One big difference with BEML is that it is interpreted at runtime, which means it's a bit simpler in it's language constructs, but this allows Brightcove to provide quick previews and good caching of players.

The player I wanted to create needed to display a long description below the video. None of the default templates had a really large place for text, but it looked to me like one of the existing templates could be altered for my use. So I went went into the publishing module, clicked on All Templates, and then clicked on Duplicate for the Compact Tabbed Navigation 3.0 template.

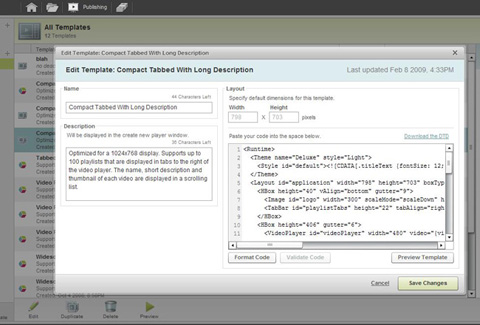

I then saw the BEML for the copied template, which I could then alter.



I first changed the height in the BEML so that the player would be taller. I didn't know exactly how much long description space I would need on the bottom, so it's probably too large, but that doesn't matter if the player is only being viewed on its own page. To change the height, I changed:

<Layout id="application" width="798" height="603" boxType="vbox"
    padding="6" gutter="4">

to:

<Layout id="application" width="798" height="703" boxType="vbox"
    padding="6"  gutter="4">

I decided I would use the Long Description field for each video, which can be edited in the media module, to display the text that I wanted. So I replaced the existing reference to the Short Description in the BEML to refer to where I what I would really edit for each video. I changed:

<Label height="52" multiline="true"
    text="{currentItem.shortDescription}"
    truncate="true"/>

to:

<Label height="52" multiline="true"
    text="{currentItem.longDescription}"
    truncate="true"/>

The last change I made, and the most important change, was to remove the existing XML for the template that was below the video. I only wanted the title, long description, and link in this spot. So I changed:

        <VBox gutter="15">
          ... skipping the XML in here, which includes a TitleLabel,
          Link, ExpandingBanner, and much more
        </VBox>

to:

        <VBox>
          <TitleLabel height="24" width="765" id="videoTitle"
              text="{videoPlayer.video.displayName}"
              selected="true" size="18" truncate="true"/>
          <Label height="88" width="765" multiline="true"
              id="longDesc" text="{videoPlayer.video.longDescription}"
              size="18" truncate="true"/>
          <Canvas>
            <Link x="1" y="-5" size="10" id="relatedLink"
              text="{videoPlayer.video.linkText}" vAlign="bottom"
              url="{videoPlayer.video.linkURL}"/>
          </Canvas>
        </VBox>

With the BEML changes made, I could preview and see that I had the template that I wanted.



I played around with the BEML for awhile, but the whole process still took less than an hour. It was a lot more time consuming to edit the videos and come up with the descriptions. After the template was created, I created a player from the template, made all the changes in the media module for the videos, and saw the results of my work.



I had fun creating the player, which was some good eating of dog food. If you'd like to learn more about BEML, I would start at Customizing Players with BEML in the Brightcove documentation. And if you'd like to see me almost step on a poisonous snake, you can look here.

Update: check out Jeremy Allaire's post for more details on BEML.

Update2:Here's the full BEML from my example:

<Runtime>
  <Theme name="Deluxe" style="Light">
    <Style id="default"><![CDATA[.titleText {fontSize: 12;}
         .bodyText {fontSize: 10;}.linkText {fontSize: 10;}]]></Style>
  </Theme>
  <Layout id="application" width="798" height="723" boxType="vbox"
       padding="6" gutter="4">
    <HBox height="40" vAlign="bottom" gutter="9">
      <Image id="logo" width="300" scaleMode="scaleDown"
           hAlign="left" vAlign="bottom"/>
      <TabBar id="playlistTabs" height="22" tabAlign="right"
           hideSingleTab="true"/>
    </HBox>
    <HBox height="406" gutter="6">
      <VideoPlayer id="videoPlayer" width="480"
           video="{videoList.selectedItem}"/>
      <List id="videoList" rowHeight="78" automaticAdvance="true"
           data="{playlistTabs.selectedItem.videoDTOs}"
           selectOnClick="true" itemInsetV="4" itemLeading="2">
        <ListItem boxType="hbox">
          <Spacer width="8"/>
          <VBox width="80" height="74" vAlign="middle">
            <ThumbnailButton height="60" data="{currentItem}"
                 source="{currentItem.thumbnailURL}"/>
          </VBox>
          <Spacer width="7"/>
          <VBox>
            <Spacer height="3"/>
            <TitleLabel height="18" text="{currentItem.displayName}"
                 truncate="true"/>
            <Label height="52" multiline="true"
                 text="{currentItem.longDescription}"
                 truncate="true"/>
          </VBox>
          <Spacer width="3"/>
        </ListItem>
      </List>
    </HBox>
    <VBox gutter="15">
      <HBox height="102">
        <Spacer width="6"/>
        <VBox>
          <TitleLabel height="24" width="765" id="videoTitle"
               text="{videoPlayer.video.displayName}" selected="true"
               size="18" truncate="true"/>
          <Label height="72" width="765" multiline="true"
               id="longDesc"
               text="{videoPlayer.video.longDescription}" size="18"
               truncate="true"/>
          <Canvas>
            <Link x="1" y="-5" size="10" id="relatedLink"
                 text="{videoPlayer.video.linkText}" vAlign="bottom"
                 url="{videoPlayer.video.linkURL}"/>
          </Canvas>
        </VBox>
      </HBox>
    </VBox>
  </Layout>
</Runtime>
